// Machine Configurator — Build Your Iron

ConfigureYour Iron.

Select class, attachment, powertrain — get specs and a pre-filled quote in one session.

14–20T Mid Excavator heavy equipment machine on job site
EX-14M
Op. Weight
17,400 kg
Engine
121 hp
Max Reach
9.8 m
Capacity
0.72 m³
Build Code
EX-14M-ATT-HDB-PT-T4F
01 / Machine Class
14–20T Mid Excavator
02 / Attachment Package
Heavy Duty Bucket
03 / Powertrain
Tier 4 Final Diesel
See Available Iron

Configuration saved as EX-14M-ATT-HDB-PT-T4F · No commitment required

CATERPILLAR·KOMATSU·JOHN DEERE·VOLVO CE·HITACHI·LIEBHERR·CASE·DOOSAN·HYUNDAI CE·KOBELCO·CATERPILLAR·KOMATSU·JOHN DEERE·VOLVO CE·HITACHI·LIEBHERR·CASE·DOOSAN·HYUNDAI CE·KOBELCO·

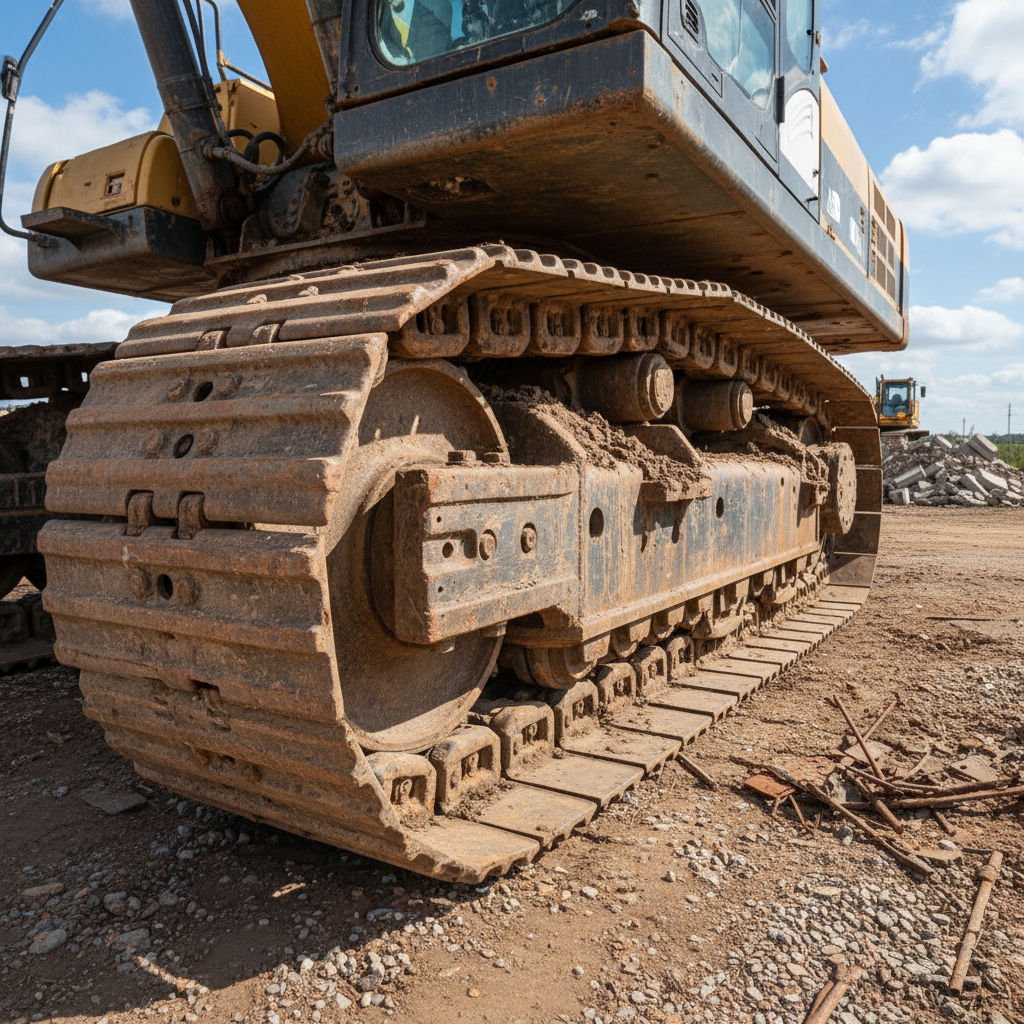

Heavy excavator undercarriage showing track tensioners, roller frames, and steel track links on a job site
// Section 01 — Undercarriage
8,400
lb tensile strength per track link

Sealed and lubricated track (SALT) system. Hardened steel rollers. Field-replaceable components without pulling the machine.

Track Gauge
2,380 mm
Ground Pressure
0.51 kg/cm²
Rollers
9+1 / side

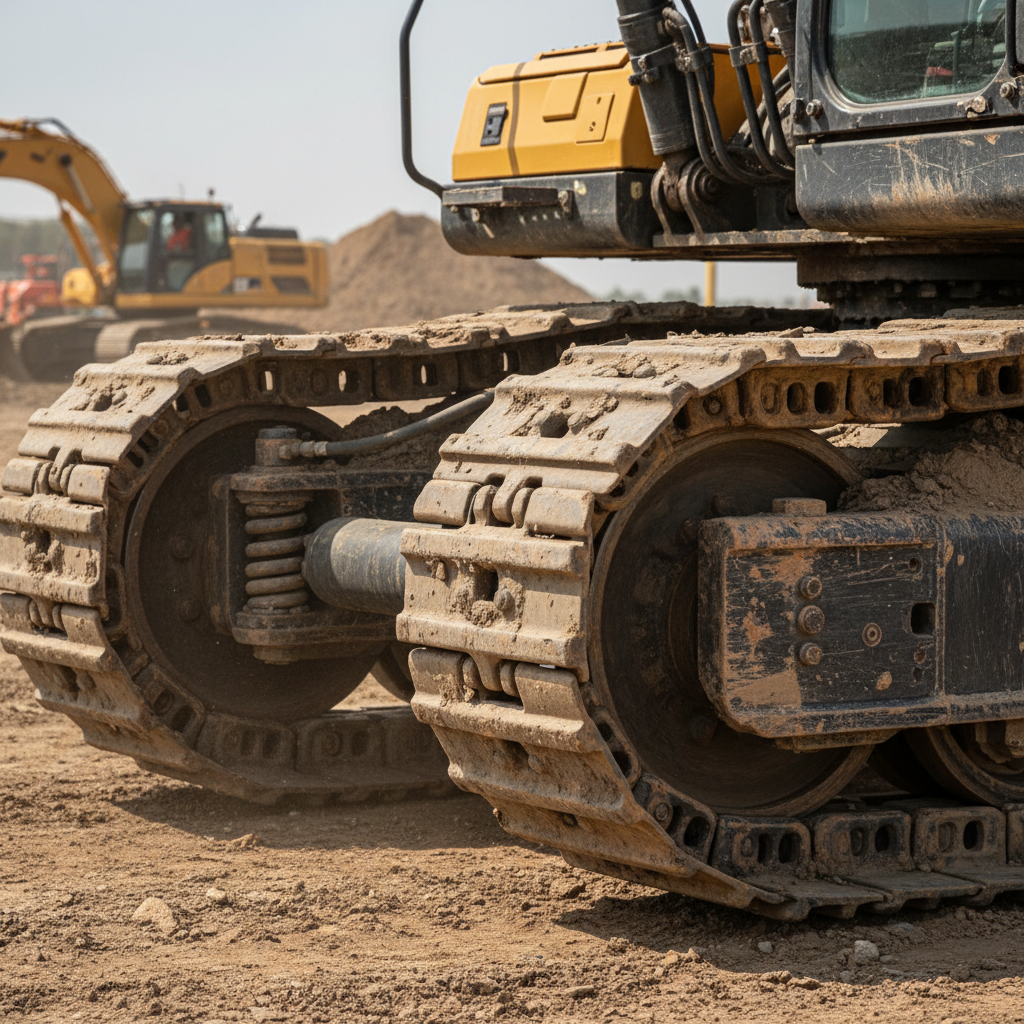

Excavator track system close-up showing roller frames and track tensioner components during operation
SALT Track System
Recoil Spring Tensioner

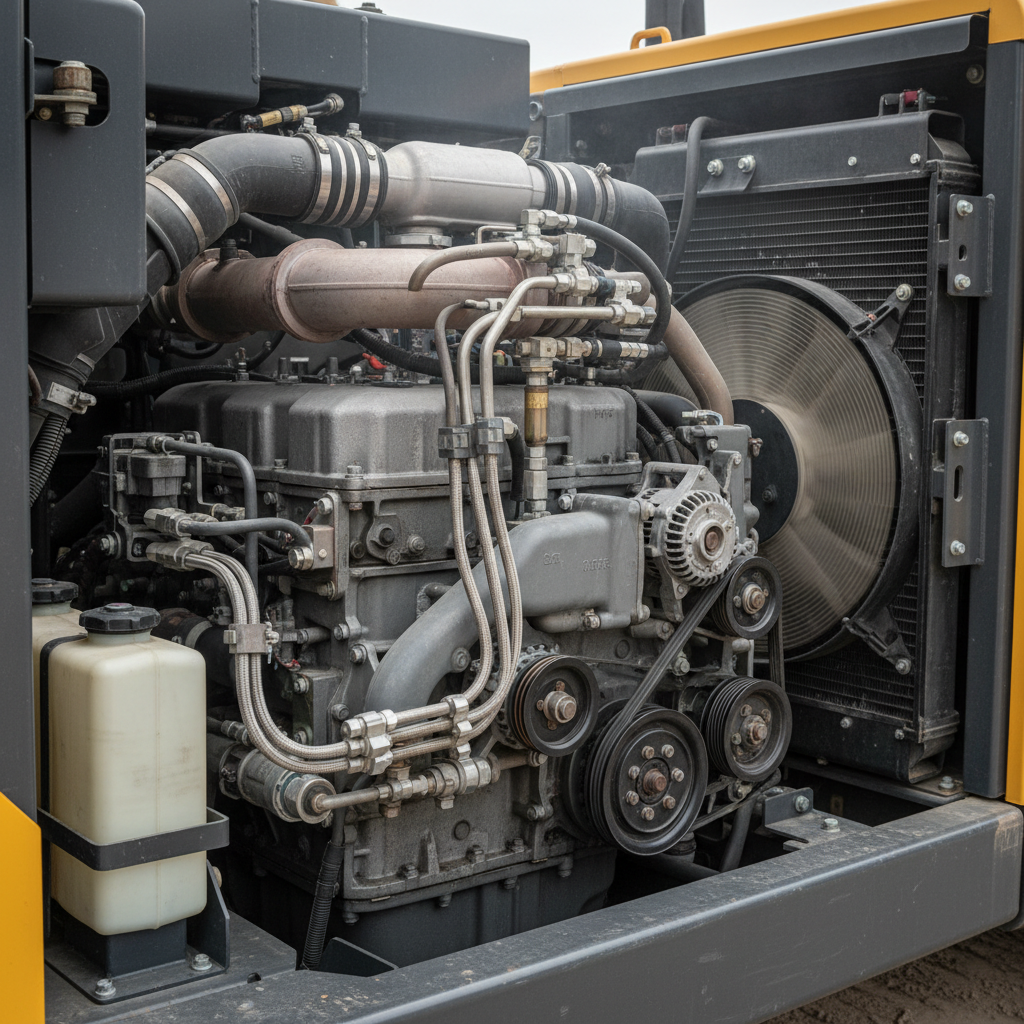

Heavy equipment engine bay showing Tier 4 Final diesel engine components, hydraulic lines, and cooling system during operation
// Section 02 — Powertrain

Tier 4
Final.

Every unit in our inventory meets EPA Tier 4 Final emissions. No exceptions. No surprises on the job site permit.

EPA Tier 4 Final Certified
Displacement
7.0 L
Peak Torque
1,140
N·m @ 1,400 rpm
DEF Consumption
< 3%
of fuel
Service Interval
500
hrs oil change
Regen Cycle
Active
DPF Passive Regen
Warranty
5yr
powertrain

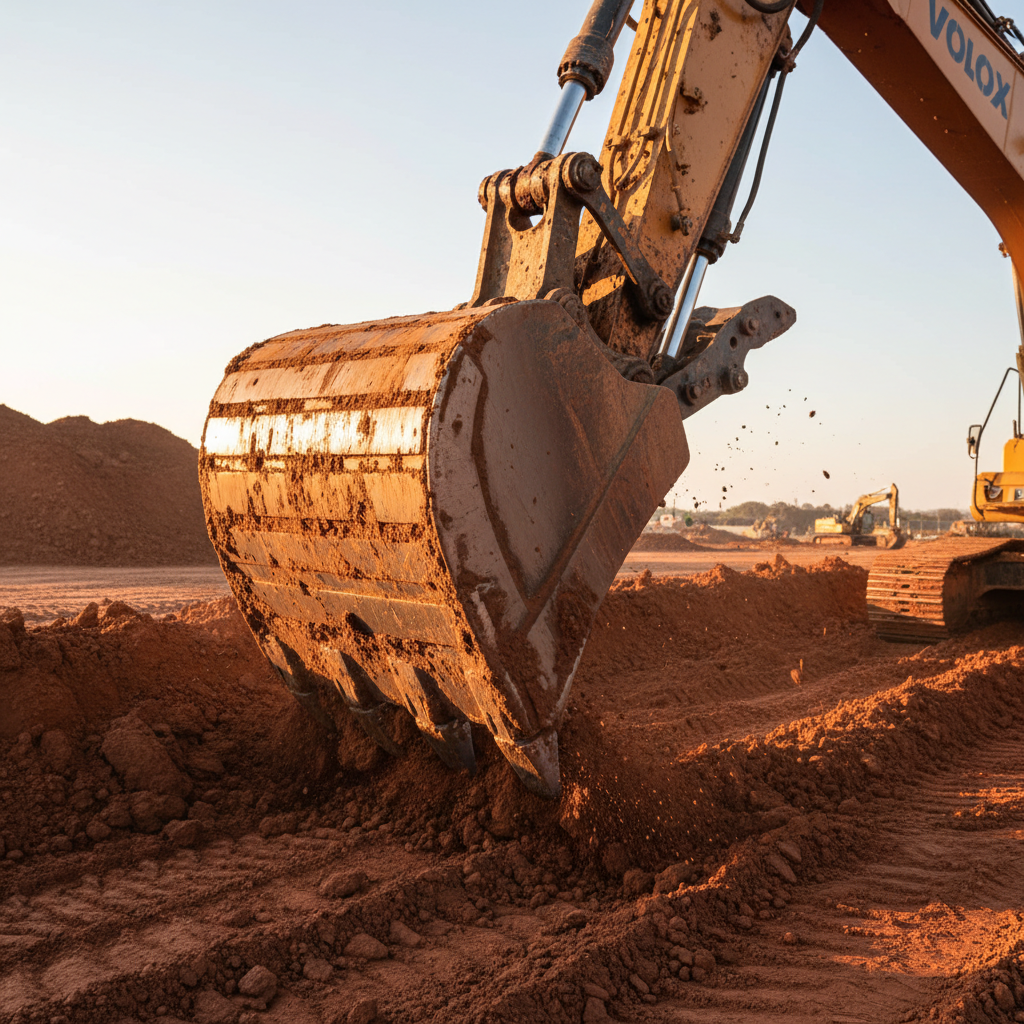

Excavator bucket curling through red clay earth during active excavation operation, showing hydraulic power and digging force
// Section 03 — In Operation
2.4s
bucket-to-dump cycle time, 20T class

Hydraulic pump output: 2 × 280 L/min. Load-sensing system maintains pressure only where the work is — every joystick input is answered.

LIVE TELEMETRY — EX-14M
OPERATING
Hydraulic Pressure
34.3 MPanominal
Engine Load
78%of rated
Coolant Temp
91°Cnormal range
DEF Level
82%full
Fuel Consumption
14.2 L/hrat load
Data from 247 active fleet unitsALL SYSTEMS NOMINAL
// Fleet Trust — Verified Operators
$2.4B
Iron moved in 2025
total fleet value
8,200+
Machines deployed
active in field
19 days
Avg. delivery
spec to site
48
States served
continental US
Marcus Trevino, Fleet Manager at Southwest Earthworks LLC
Diane Kowalczyk, Project Manager at Kowalczyk General Contracting
Darnell Washington, Owner-Operator at Washington Site Prep
"

Replaced six aging D6s in one order. Iron had them spec'd, financed, and delivered to our Utah corridor site in 19 days. That's a record for us.

Marcus Trevino
Fleet Manager · Southwest Earthworks LLC
6 units · D6 Dozer · Stage V
Ready to add to your fleet?

247 units.
Ready to ship.

Build & Get Your Quote1-800-555-1234
